Operational demonstration

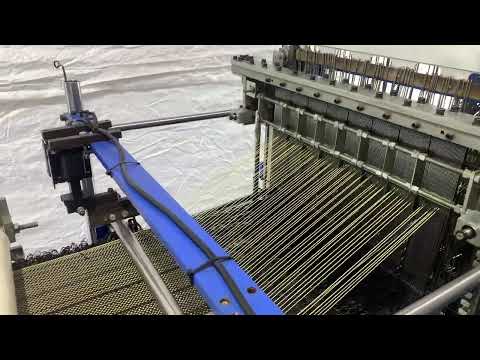

16-Layer Orthogonal 3D Weaving
Physical multilayer platform demonstrating machine motion and the woven process route.
Open on YouTubeCapability gateway
Machinery detail belongs inside the capability story.
Our capability is the combined route from structural requirement to yarn architecture, machine configuration, physical preform and programme-specific validation.
Primary process platforms
Each capability links to the machine and evidence behind it.
The status labels distinguish developed systems from work that remains in development.
01
Developed platform
3D orthogonal weaving
Developed X–Y–Z multilayer machinery for thick sections, blocks and integrated T/L/profile preforms.
02Developed / supplied
Polar orthogonal weaving
Developed and supplied machine direction for circular, cylindrical, conical, ring and dome-type architectures.
03Developed / supplied
Needle-felting machinery
Laboratory and continuous-web systems for technical fibres, carbon felts, insulation structures and shaped 2.5D preforms.
04Developed system
4D weaving systems
X at 0°, Y at +60°, W at −60° and Z through thickness for four-direction structural architectures.
05In development
5D weaving development
X at 0°, Y at 90°, W at +45°, V at −45° and Z through thickness.
06Project-specific
Near-net preform machinery
Geometry-led machine development for forming reinforcement closer to the intended component shape.

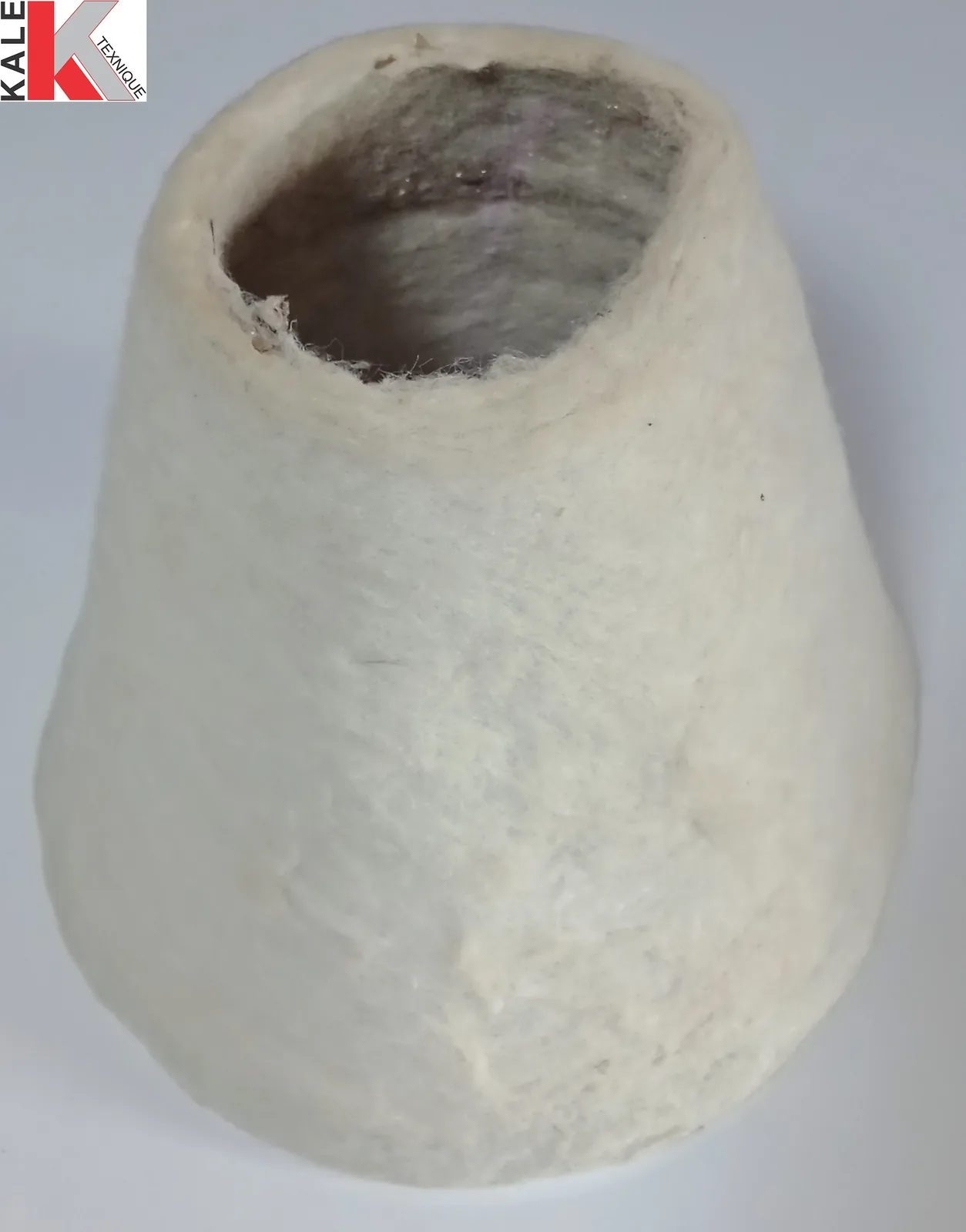

Needle felting as a major capability
2.5D needled structures for insulation and ablative-material development.
Needle felting is not a secondary footnote to weaving. It is a distinct platform for consolidating layered fibre webs through thickness, developing thick carbon or technical-fibre felts and forming non-flat preforms.
Potential programmes include thermal insulation, furnace and high-temperature textile systems, carbon–carbon precursor felts and ablative-material preforms. Final insulation or ablative performance depends on fibre type, density, impregnation or matrix route, heat treatment, geometry and the relevant thermal/erosion test programme.
Machine evidence
Representative demonstrations beside the capability they support.
Physical machine

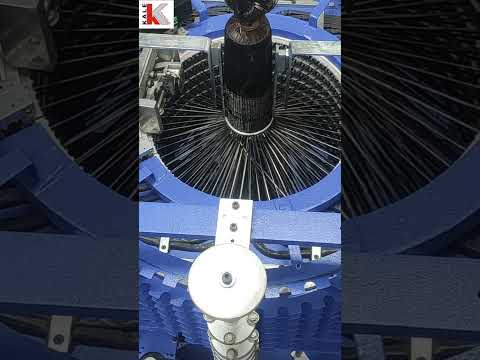

Polar Orthogonal 3D Weaving
Physical polar machine demonstrating axisymmetric and conical process movement.
Open on YouTubePhysical machine

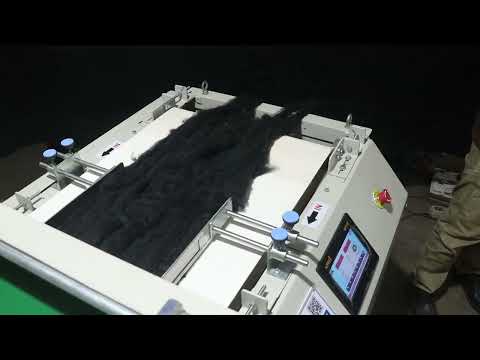

HMI-Controlled Needle Felting
Laboratory platform for controlled technical-fibre needling and preform development.
Open on YouTubeDevelopment route
From a non-confidential problem statement to an evidence plan.
- 01
Requirement screen
Geometry class, material family, process difficulty and target operating environment.
- 02
Architecture route
Needled, orthogonal, polar, four-direction, five-direction or hybrid development path.
- 03
Machine & preform scope
Motion, yarn control, size range, density, thickness and physical demonstrator definition.
- 04
Validation boundary
Agreed tests, customer responsibilities, confidentiality and evidence required for any performance claim.
